Capcitive Touch Sensor IC

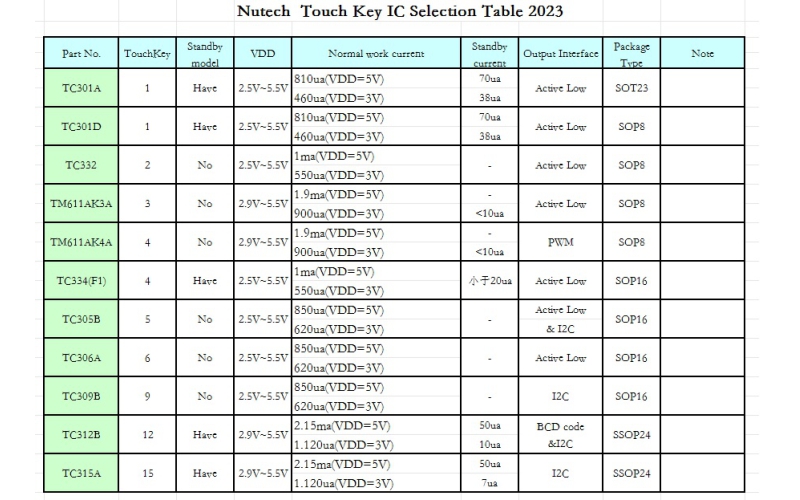

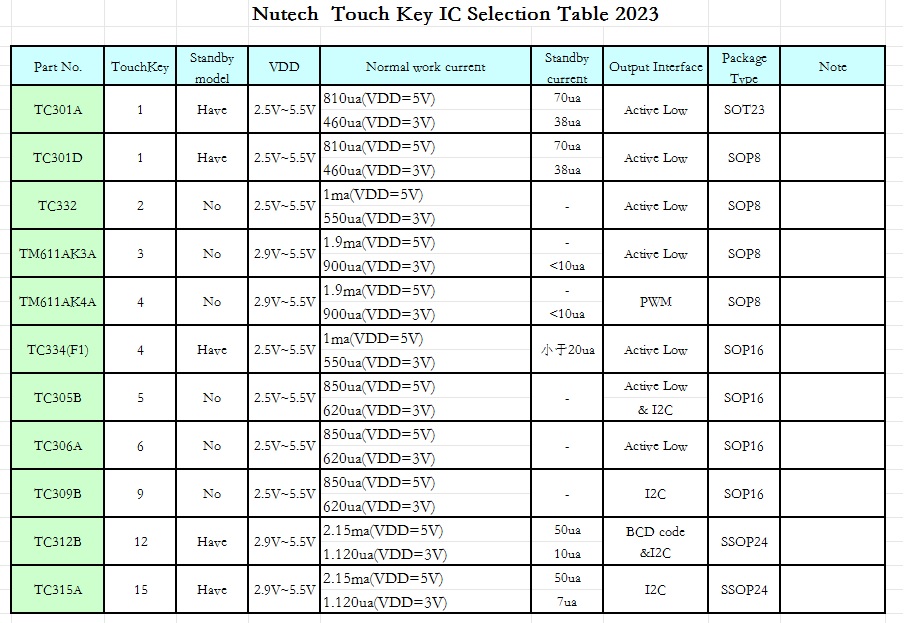

TouchSensor Selection Table

TC series touchSensor can deal 1 ~ 15 keys And pass CS dynamic 10V test● TC series touch chip includes tc301a (single key), tc301d (single key), tc332a (two keys), tc334a (four

  • Model specifications: Nutech
  • Data sheet:
  • Brand:

TC series touchSensor can deal 1 ~ 15 keys And pass CS dynamic 10V test, and EFT 4000V test


● TC series touch chip includes

        tc301a (single key), tc301d (single key),

        tc332a (two keys),

        tc334a (four keys),

        tc305b (five keys),

        tc306a(six keys),

        tc309a (nine keys),

        tc312b (12 keys),

        tc315a (15 keys)

● All chips has strong anti-interference capability.

● It can automatically calibrate sensitivity

● reduce system complexity and improve stability.

● Embedded common mode interference eliminates circuit

Application range

    ★ media player

    ★ consumer electronic appliance

    ★ traditional  machinery key replacement
