Liquid Level Sensor IC

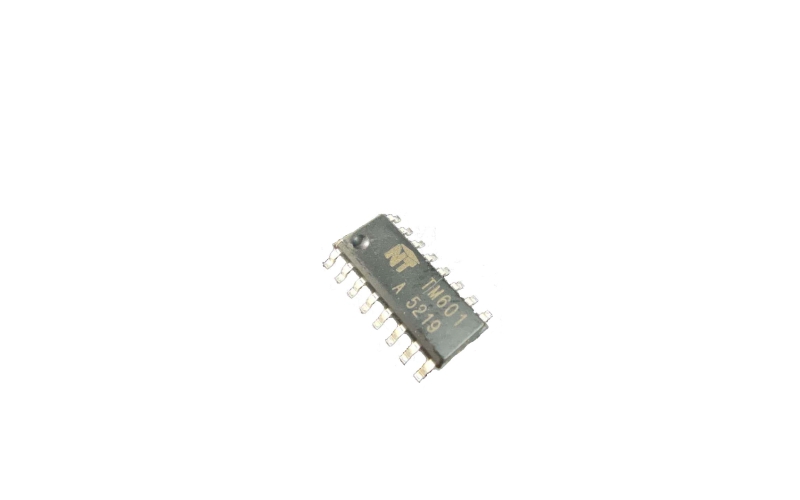

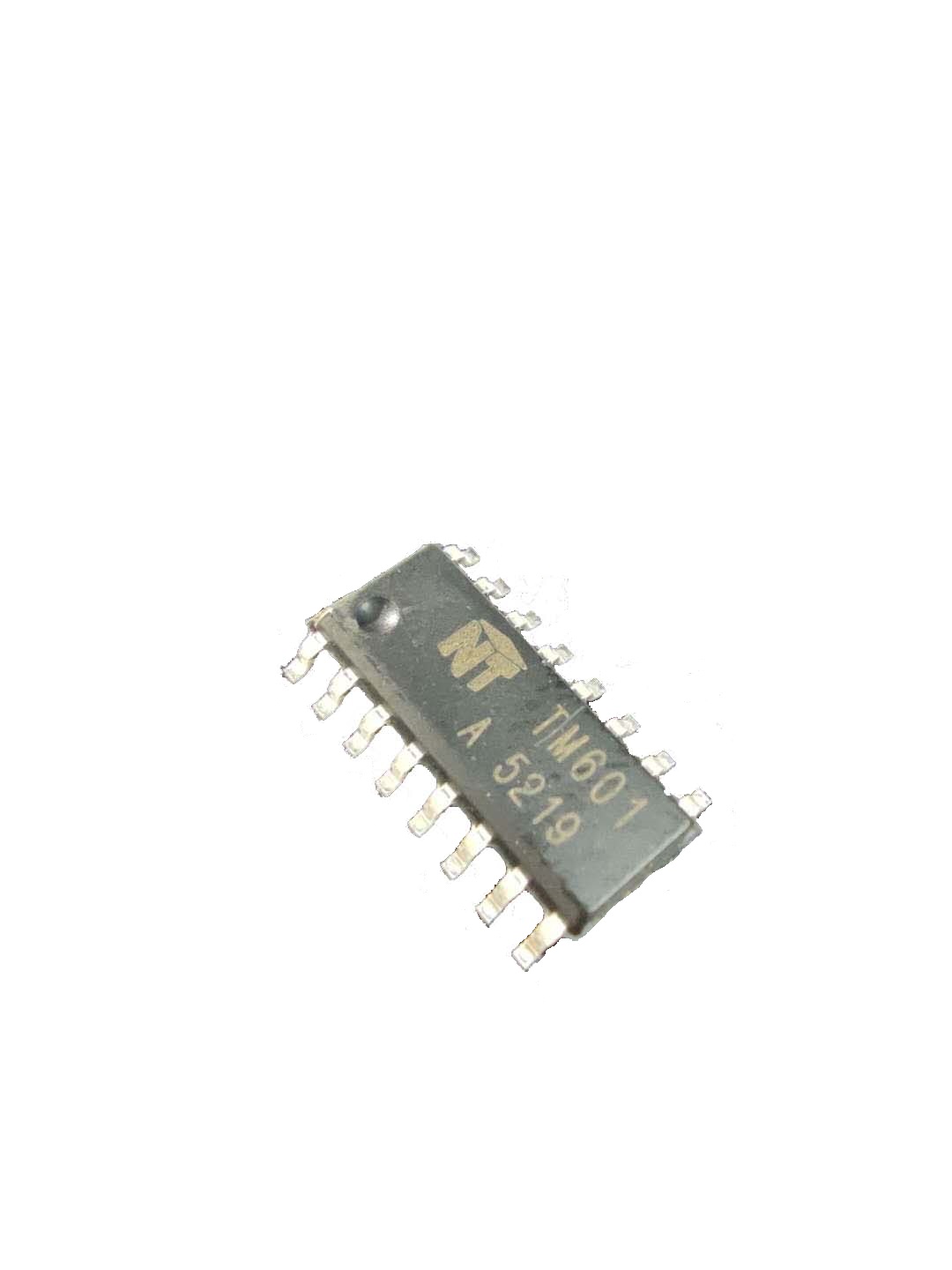

Six point liquid level detection chipTM601AWL6P

1. OverviewTm601awl6p is a six channel capacitance sensor chip. It can be used as a 6-point liquid level detection controller. By detecting the capacitance of six sampling channels, we can judge wheth

  • Model specifications: TM601AWL6P
  • Data sheet: Nutech
  • Brand: ../upload/file/TM601AWL6P_chspec_V00.pdf

1. Overview

Tm601awl6p is a six channel capacitance sensor chip. It can be used as a 6-point liquid level detection controller. By detecting the capacitance of six sampling channels, we can judge whether the induction electrode is covered with liquid.



2. Features

¨It can control 6 sampling channels

¨ low cost system

¨ one to one output

¨Reduce system complexity and improve stability

¨Embedded common mode interference removal circuit


3. Application

¨ drinking fountains

¨ coffee machine

¨ industrial equipment

¨home appliances
