Liquid Level Sensor IC

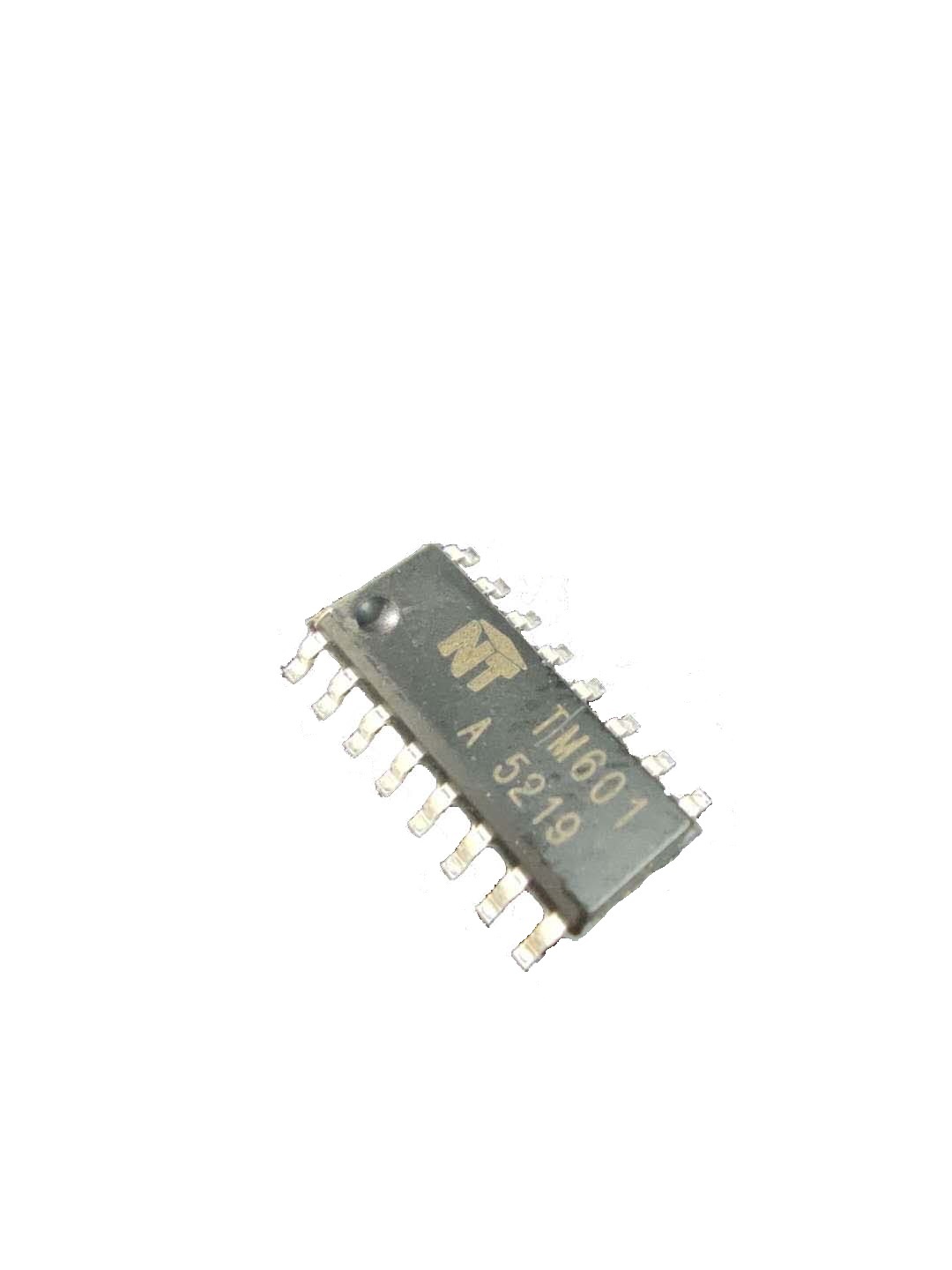

Eight point liquid level detection chipTM601AWL8P

1. OverviewTM601AWL8P is an eight channel capacitance sensing chip. It can be used as a controller for 8-point liquid level detection. By detecting the capacitance of 8 sampling channels, we can judge

  • Model specifications: TM601AWL8P
  • Data sheet: Nutech
  • Brand: ../upload/file/TM601AWL8P_chspec_V00.pdf

1. Overview

TM601AWL8P is an eight channel capacitance sensing chip. It can be used as a controller for 8-point liquid level detection. By detecting the capacitance of 8 sampling channels, we can judge whether the induction electrode is covered with liquid.


2. Features

¨It can control 8 sampling channels

¨low cost system

¨The PWM output and I2C interface are effective at the same time

¨Reduce system complexity and improve stability

¨Embedded common mode interference removal circuit

¨ RoHS compatible sop-16 packaging


3. Application

¨ drinking fountains

¨ coffee machine

¨ industrial equipment

¨ home appliances
